● 楔形三爪大贯通孔径。
● 摺动面均经硬化及精密研磨，并直接润滑。 ● 高刚性结构及高夹持精度。

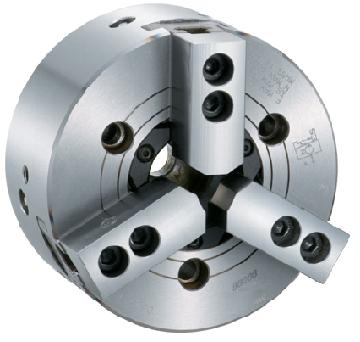

● It's a WEDGE-HOOK type 3-jaw with the extra large through-hole.
● Matching surfaces of all parts hardened, ground and lubricated directly.
● Construction of high rigidity and high clamping accuracy.
● J值为连结螺帽未车制螺牙时之孔径。K Default 值为未指定规格之出厂值。Kmax 值为连结螺帽 可车制螺牙之最大规格，可依实际需求订制。
● J value is the hole diameter of blank draw nut, K is the maximum thread specification,and it could be customize.
|

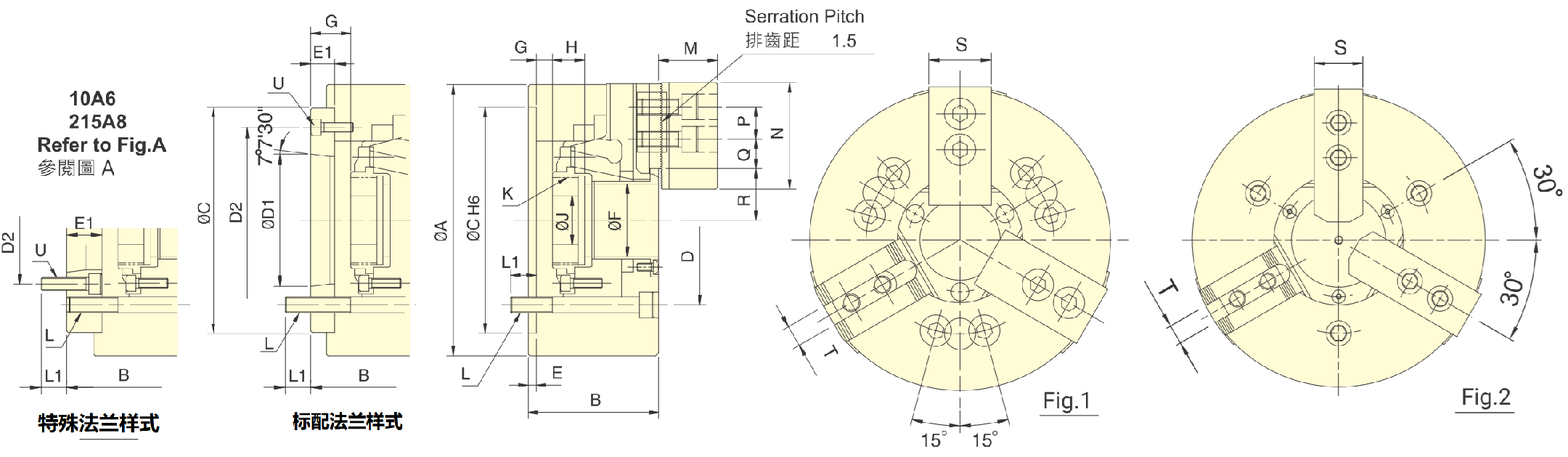

型号/尺寸
|
Kmax.
|
L
|
L1
|
M
|
N
|
P
|
Qmax.
|
Qmin.
|
Rmax.
|
Rmin.
|
S
|
T
|
U
|
参照图
|
|
3KH-04
|
M32*1.5
|
3-M10
|
16
|
—
|
24
|
52
|
14
|
11.3
|
6.8
|
23
|
23.3
|
23
|
10
|
—
|
|
|
3KH-05 A4
|
M40*1.5
|
3-M10
|
15
|
15
|
31
|
62
|
14
|
19.8
|
7.8
|
26.5
|
23.8
|
25
|
10
|
3-M6
|
|
|
3KH-06 A5
|
M55*2
|
6-M10
|
16
|
16
|
37
|
73
|
20
|
22.8
|
9.3
|
32
|
29.3
|
31
|
12
|
3-M6
|
|
|
3KH-08 A5
|
M60*2
|
6-M12
|
20
|
17
|
38
|
95
|
25
|
29.8
|
14.8
|
38.7
|
35
|
35
|
14
|
6-M10
|
|
|
3KH-08 A6
|
M60*2
|
6-M12
|
20
|
18
|
38
|
95
|
25
|
29.8
|
14.8
|
38.7
|
35
|
35
|
14
|
3-M6
|
|
|
3KH-10 A6
|
M85*2
|
6-M16
|
22
|
18
|
43
|
110
|
30
|
33.8
|
14.3
|
51
|
46.6
|
40
|
16
|
6-M12
|
|
|
3KH-10 A8
|
M85*2
|
6-M16
|
22
|
24
|
43
|
110
|
30
|
33.8
|
14.3
|
51
|
46.6
|
40
|
16
|
3-M8
|
|
|
3KH-12 A8
|
M100*2
|
6-M16
|
23
|
25
|
51
|
130
|
30
|
45.8
|
15.8
|
61.3
|
56
|
50
|
21
|
3-M8
|
|
|
3KH-15 A8
|
M130*2
|
6-M20
|
30
|
24
|
63
|
165
|
43
|
47.3
|
18.2
|
80
|
74.7
|
62
|
22
|
6-M16
|
|
|
3KH-15 A11
|
M130*2
|
6-M20
|
30
|
28
|
63
|
165
|
43
|
47.3
|
18.2
|
80
|
74.7
|
62
|
22
|
3-M10
|
|
|
3KH-18 A11
|
M130*2
|
6-M20
|
30
|
28
|
63
|
165
|
43
|
79.2
|
18.2
|
80
|
74.7
|
62
|
22
|
3-M10
|
|
|
型号/尺寸
|
A
|
B
|
C
|
D
|
D1
|
D2
|
E
|
E1
|
F
|
Gmax.
|
Gmin.
|
H
|
J
|
|
3KH-04
|
110
|
59
|
—
|
85
|
70.6
|
—
|
—
|
4
|
—
|
26
|
3.5
|
—
|
-6.5
|
—
|
17.5
|
12
|
|
3KH-05 A4
|
135
|
60
|
71
|
110
|
82.6
|
63.51
|
96
|
4
|
15
|
33
|
-9
|
6
|
-9
|
6
|
20
|
12
|
|
3KH-06 A5
|
168
|
81
|
91
|
140
|
104.8
|
82.56
|
116
|
5
|
15
|
45
|
-1
|
14
|
-1
|
14
|
19
|
20
|
|
3KH-08 A5
|
210
|
91
|
109
|
170
|
133.4
|
82.56
|
104.8
|
5
|
23
|
52
|
-1.5
|
21.5
|
-1.5
|
21.5
|
20.5
|
30
|
|
3KH-08 A6
|
210
|
91
|
103
|
170
|
133.4
|
106.38
|
150
|
5
|
17
|
52
|
-1.5
|
15.5
|
-1.5
|
15.5
|
20.5
|
30
|
|
3KH-10 A6
|
254
|
100
|
120
|
220
|
171.4
|
106.38
|
133.4
|
5
|
25
|
75
|
-10.5
|
14.5
|
-10.5
|
14.5
|
25
|
45
|
|
3KH-10 A8
|
254
|
100
|
113
|
220
|
171.4
|
139.72
|
190
|
5
|
18
|
75
|
-10.5
|
7.5
|
-10.5
|
7.5
|
25
|
45
|
|
3KH-12 A8
|
304
|
110
|
122
|
220
|
171.4
|
139.72
|
190
|
6
|
18
|
91
|
-15
|
3
|
-15
|
3
|
28
|
50
|
|
3KH-15 A8
|
381
|
133
|
160
|
300
|
235
|
139.72
|
171.4
|
6
|
33
|
120
|
-12
|
21
|
-12
|
21
|
39
|
60
|
|
3KH-15 A11
|
381
|
133
|
149
|
300
|
235
|
196.87
|
260
|
6
|
22
|
120
|
-12
|
10
|
-12
|
10
|
39
|
60
|
|
3KH-18 A11
|
450
|
133
|
149
|
300
|
235
|
196.87
|
260
|
6
|
22
|
120
|
-12
|
10
|
-12
|
10
|
39
|
60
|
|
型号/参数
|
楔形行程mm/plunger stroke
|
爪行程直径mm/jaw stroke dia
|
夹持直径mm chucks dia.
|
容许油压缸推力kn(kgf) max.d.b.pull
|
最大夹持力KN(kgf) Max.clamping force
|
最高回转速min(r.p.m)Max speed
|
I kg•m²
|
重量kg weight
|
适用回转缸 matching cyl.
|
最大使用压力Max.pressure Mpa(kgf/cm²)
|
|
最大 max.
|
最小min.
|
|
3KH-04
|
10
|
5.4
|
110
|
7
|
13.7(1400)
|
28.4(2900)
|
8000
|
0.01
|
4
|
TH-428
|
2.0(20)
|
|
3KH-05 A4
|
10
|
5.4
|
135
|
12
|
17.1(1750)
|
35.8(3650)
|
7000
|
0.02
|
6.7
|
TH-536
|
2.5(25)
|
|
3KH-06 A5
|
12
|
5.5
|
168
|
15
|
21.5(2200)
|
56.8(5800)
|
6000
|
0.06
|
11.9
|
TH-646
|
2.5(25)
|
|
3KH-08 A5
|
16
|
7.4
|
210
|
13
|
34.3(3500)
|
85.8(8750)
|
5000
|
0.18
|
22.5
|
TH-852
|
2.8(28)
|
|
3KH-08 A6
|
16
|
7.4
|
210
|
13
|
34.3(3500)
|
85.8(8750)
|
5000
|
0.18
|
22.5
|
TH-852
|
2.8(2.8)
|
|
3KH-10 A6
|
19
|
8.8
|
254
|
31
|
42.6(4380)
|
110.7(11300)
|
4200
|
0.33
|
34.5
|
TH-1075
|
2.9(29)
|
|
3KH-10 A8
|
19
|
8.8
|
254
|
31
|
42.6(4380)
|
110.7(11300)
|
4200
|
0.33
|
34.5
|
TH-1075
|
2.9(29)
|
|
3KH-12 A8
|
23
|
10.6
|
304
|
34
|
54.9(5600)
|
143.6(14650)
|
3300
|
0.77
|
56.6
|
TH-1291
|
2.5(26)
|
|
3KH-15 A8
|
23
|
10.6
|
381
|
50
|
71(7250)
|
179.8(18350)
|
2500
|
2.47
|
120
|
TH-1512
|
2.1(22)
|
|
3KH-15 A11
|
23
|
10.6
|
381
|
50
|
71(7250)
|
179.8(18350)
|
2500
|
2.39
|
120
|
TH-1512
|
2.1(22)
|
|
3KH-18 A11
|
23
|
10.6
|
450
|
50
|
71(7250)
|
179.8(18350)
|
2000
|
4.78
|
164
|
TH-1512
|
2.1(22)
|
|
